SSH Loaded Prewired Electric Guitar Pickguard Set Pickups for FD ST Style Electric Guitar Silver

Feature:

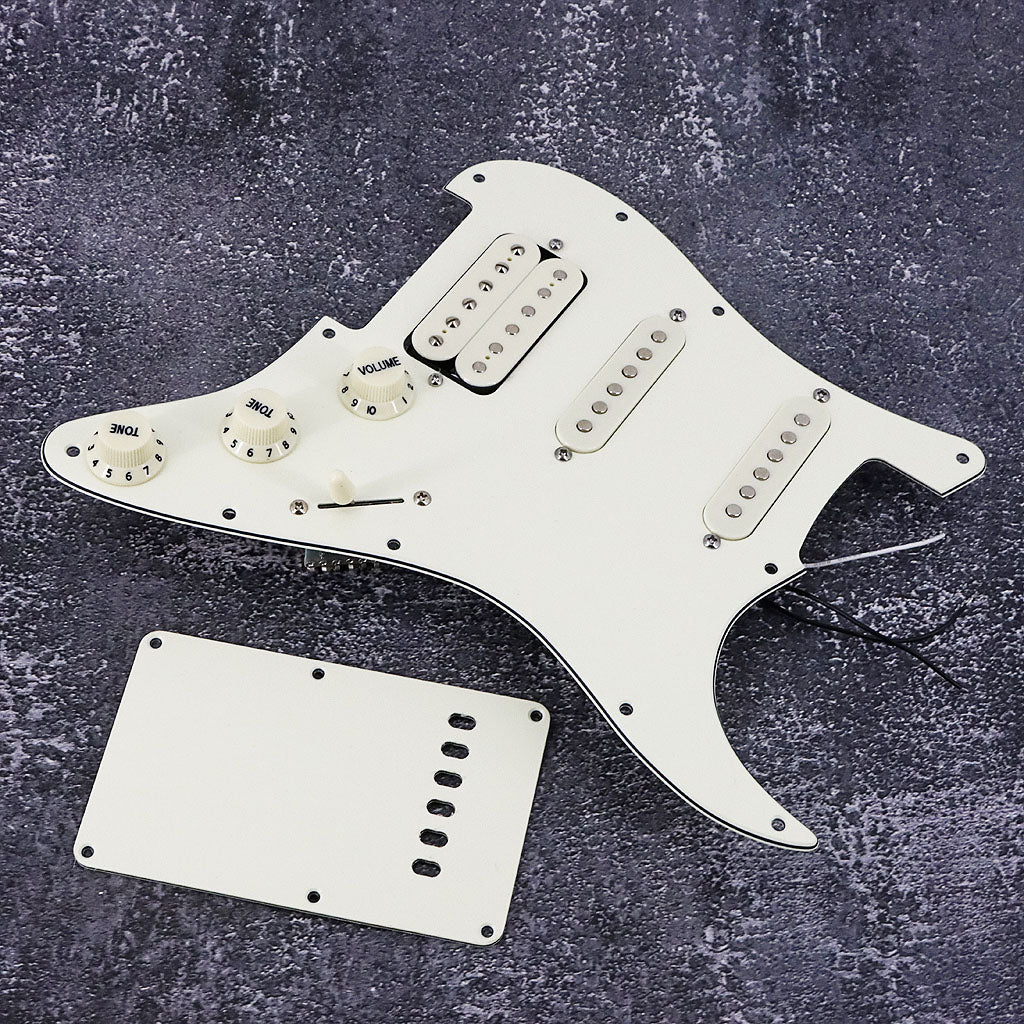

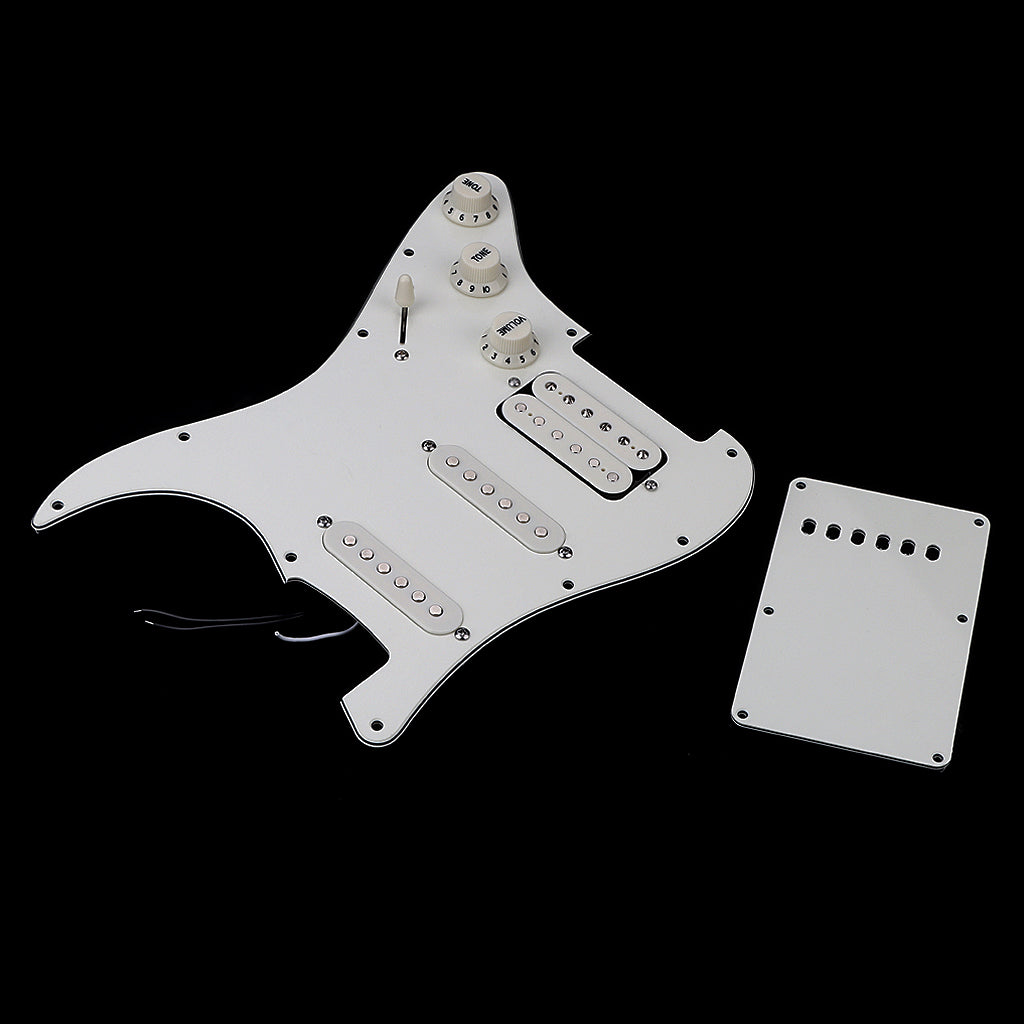

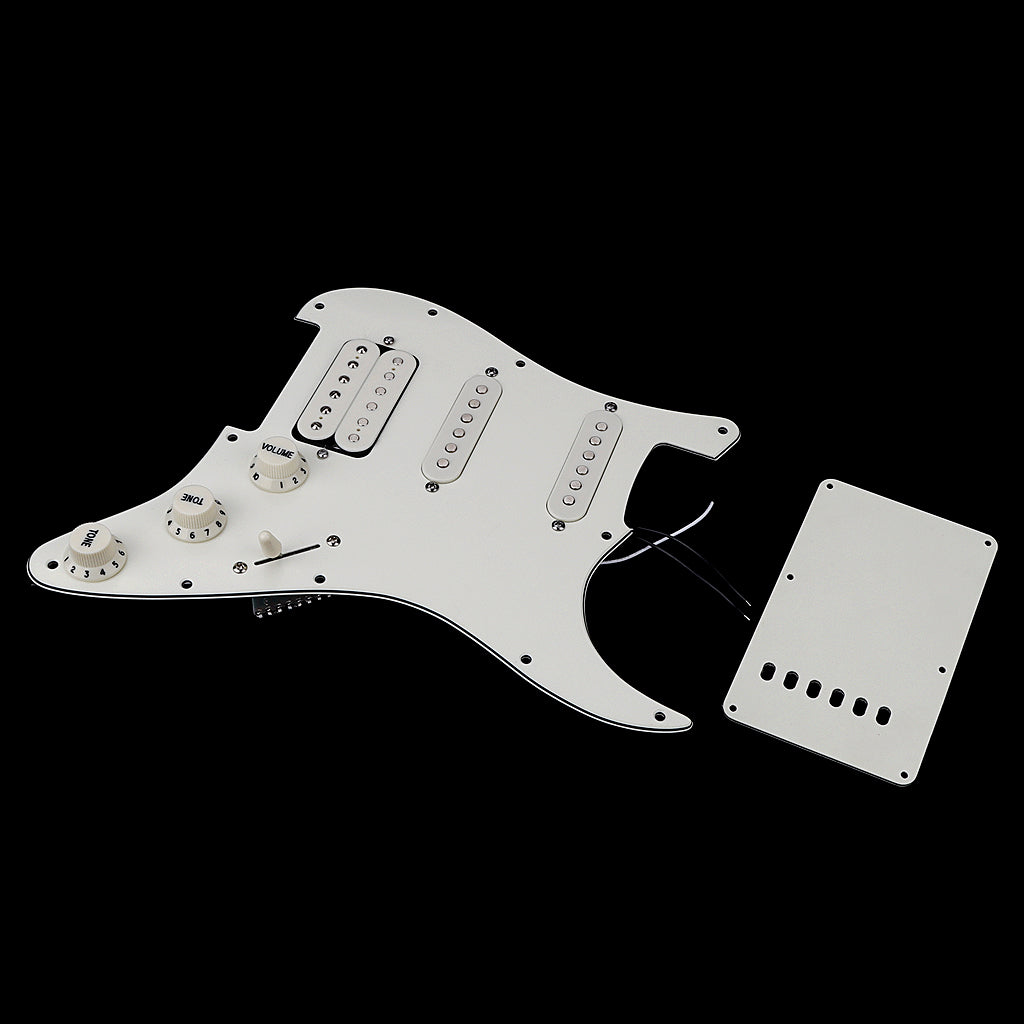

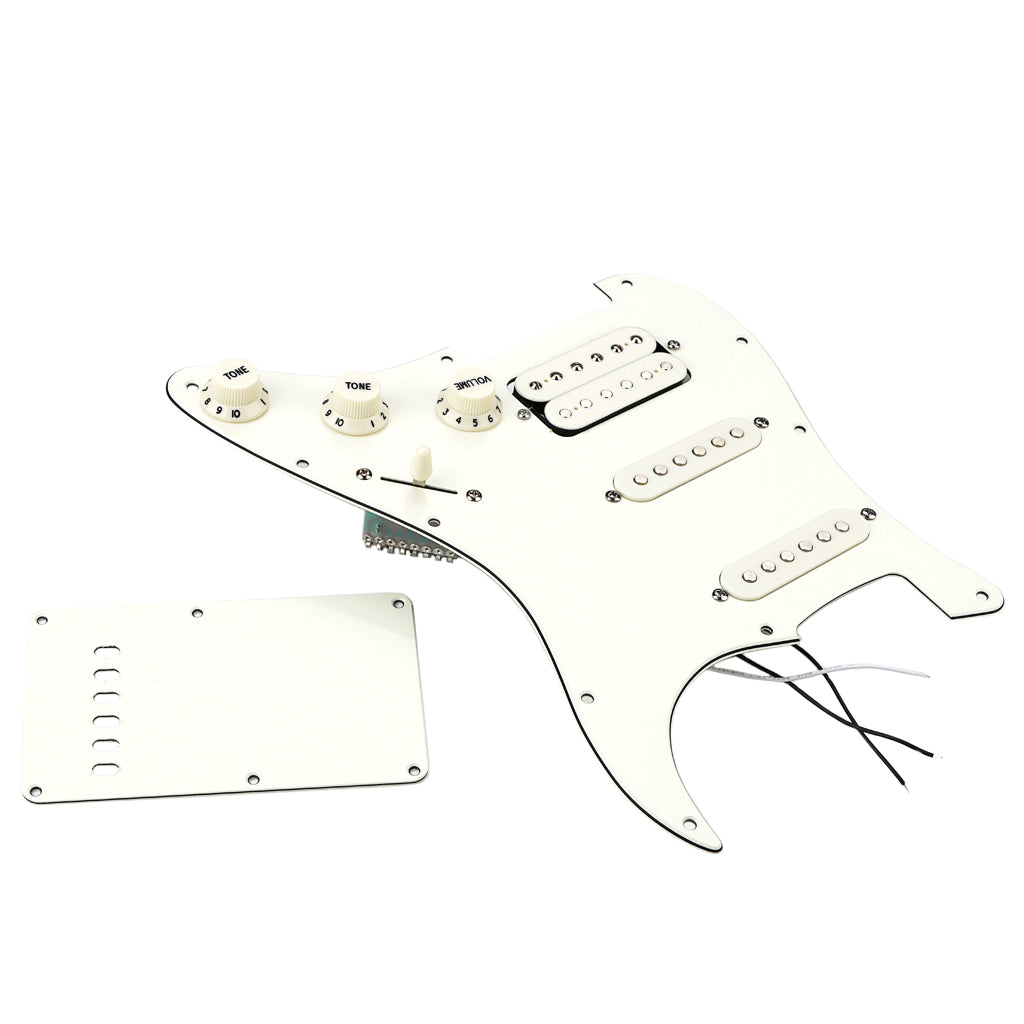

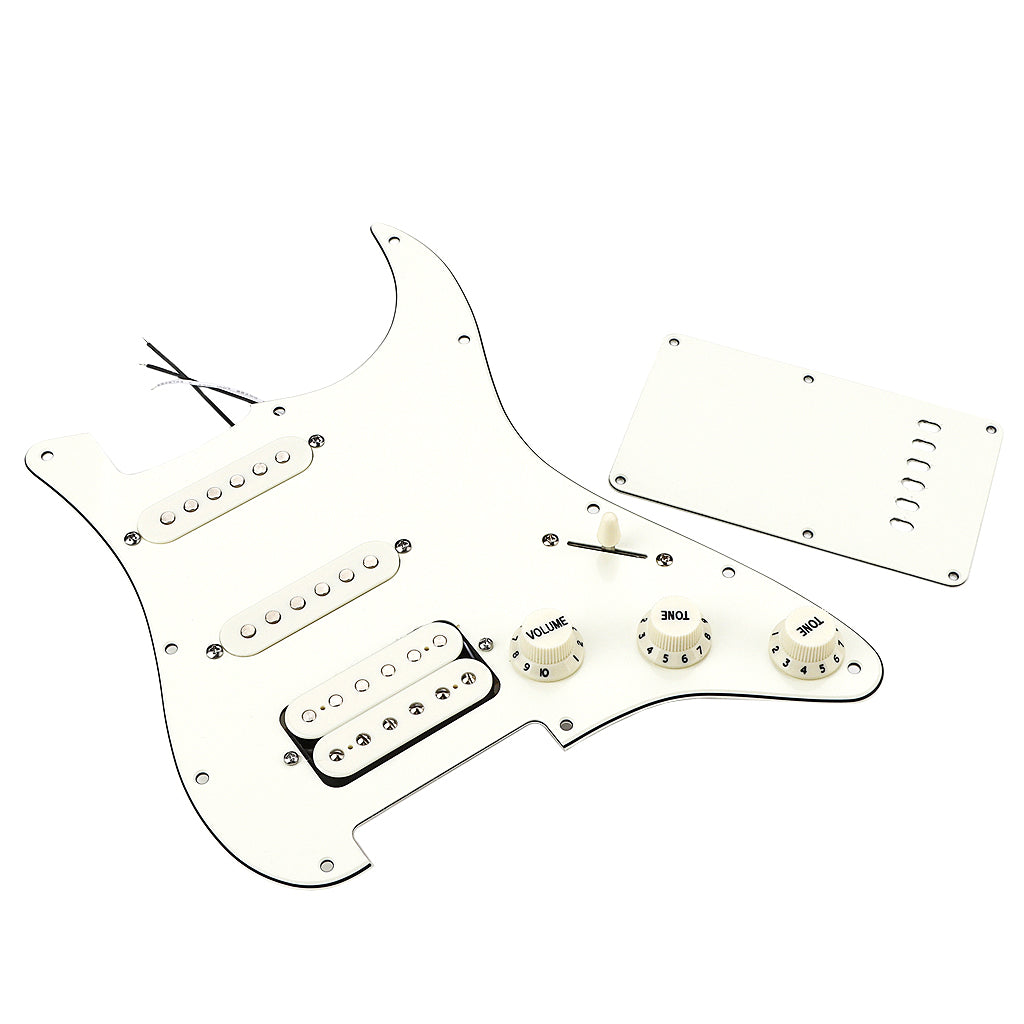

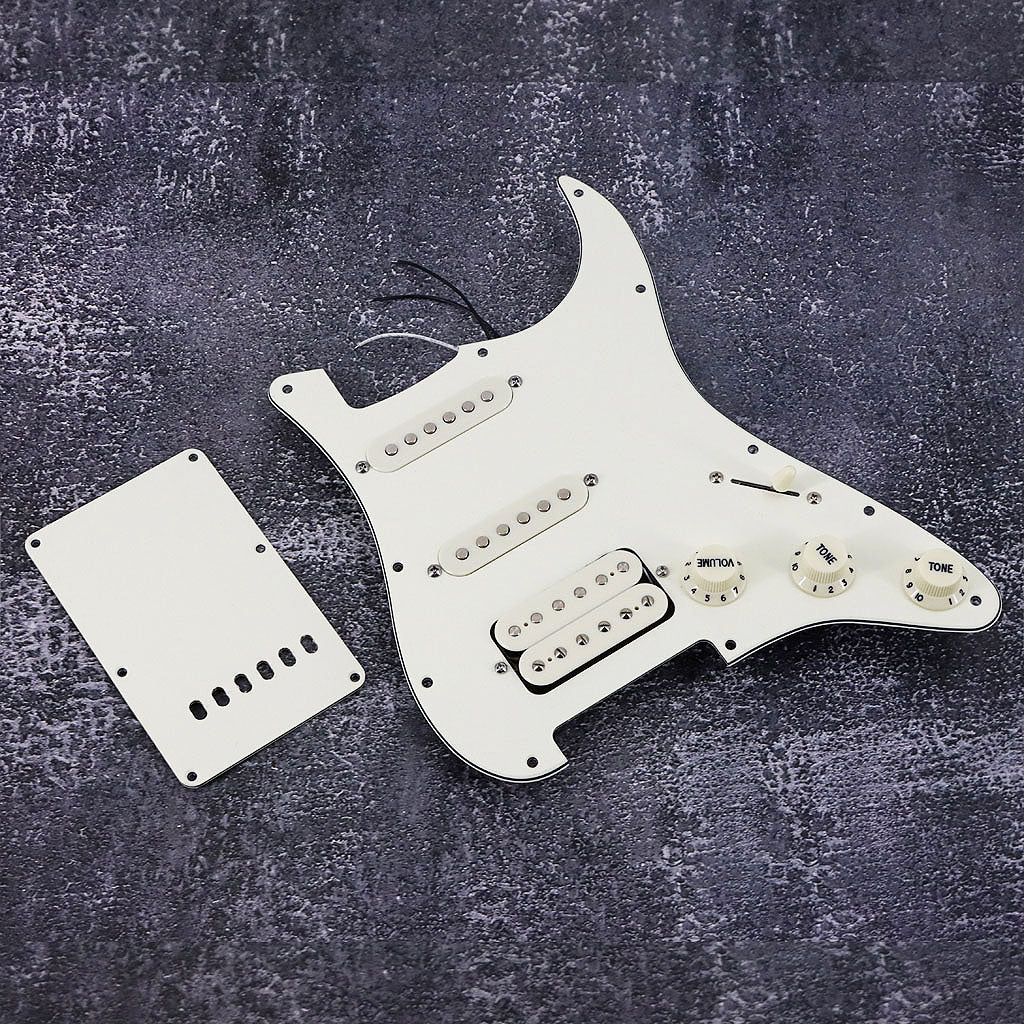

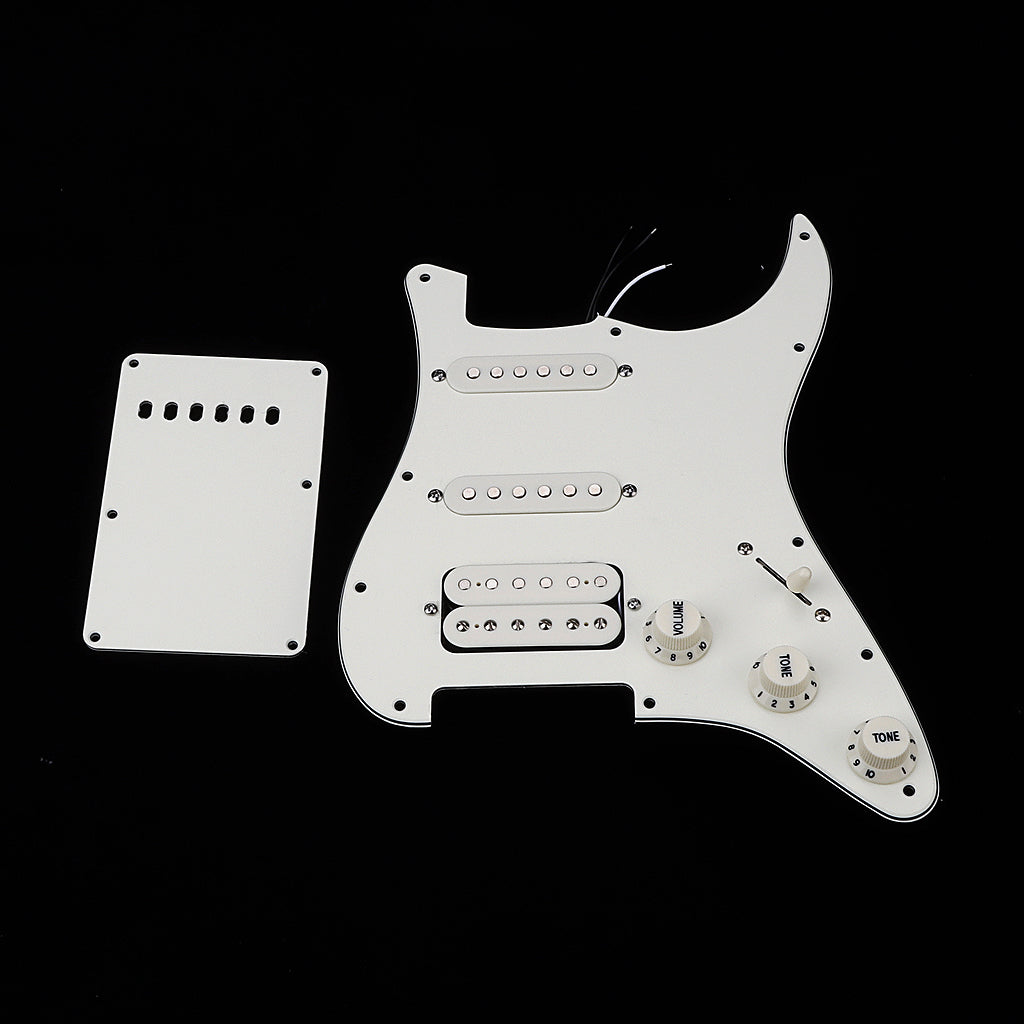

Item: A Set Loaded Prewired SSH Guitar Pickguard & Screws.

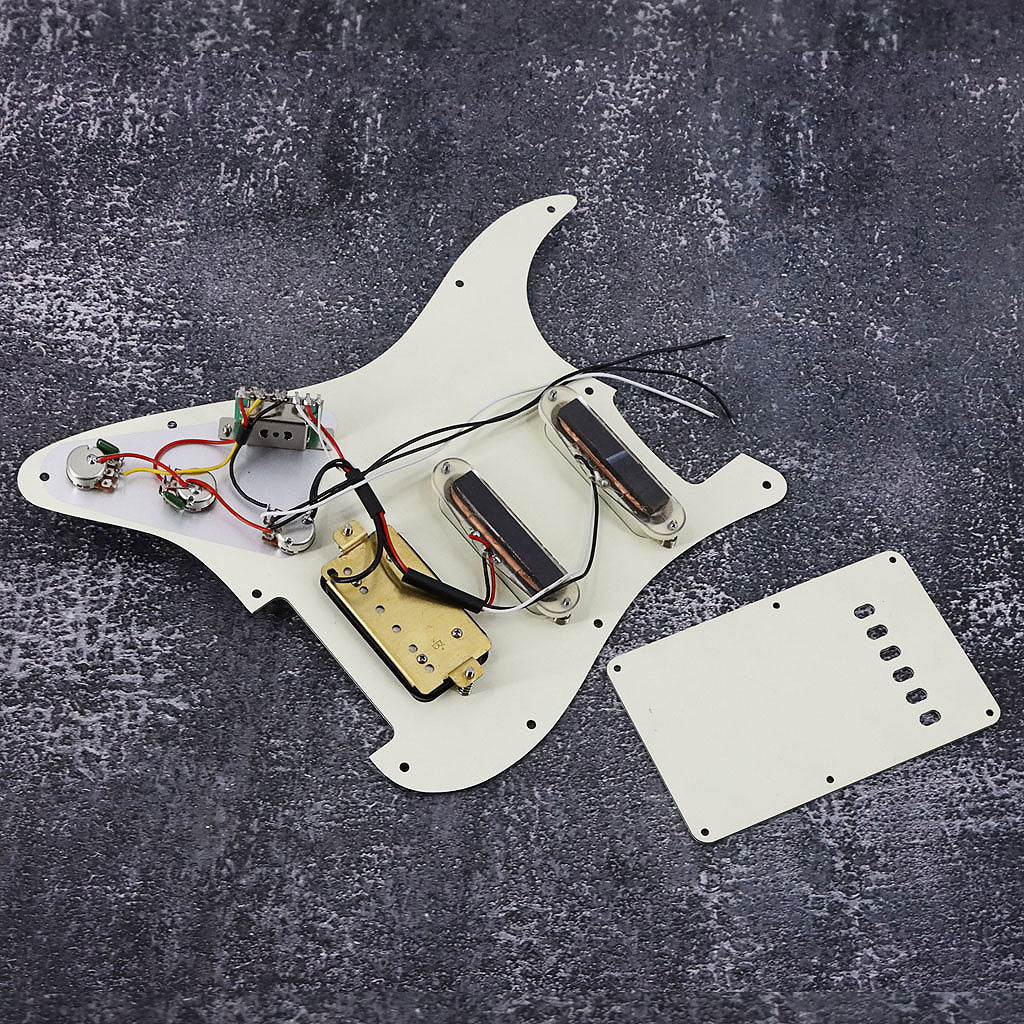

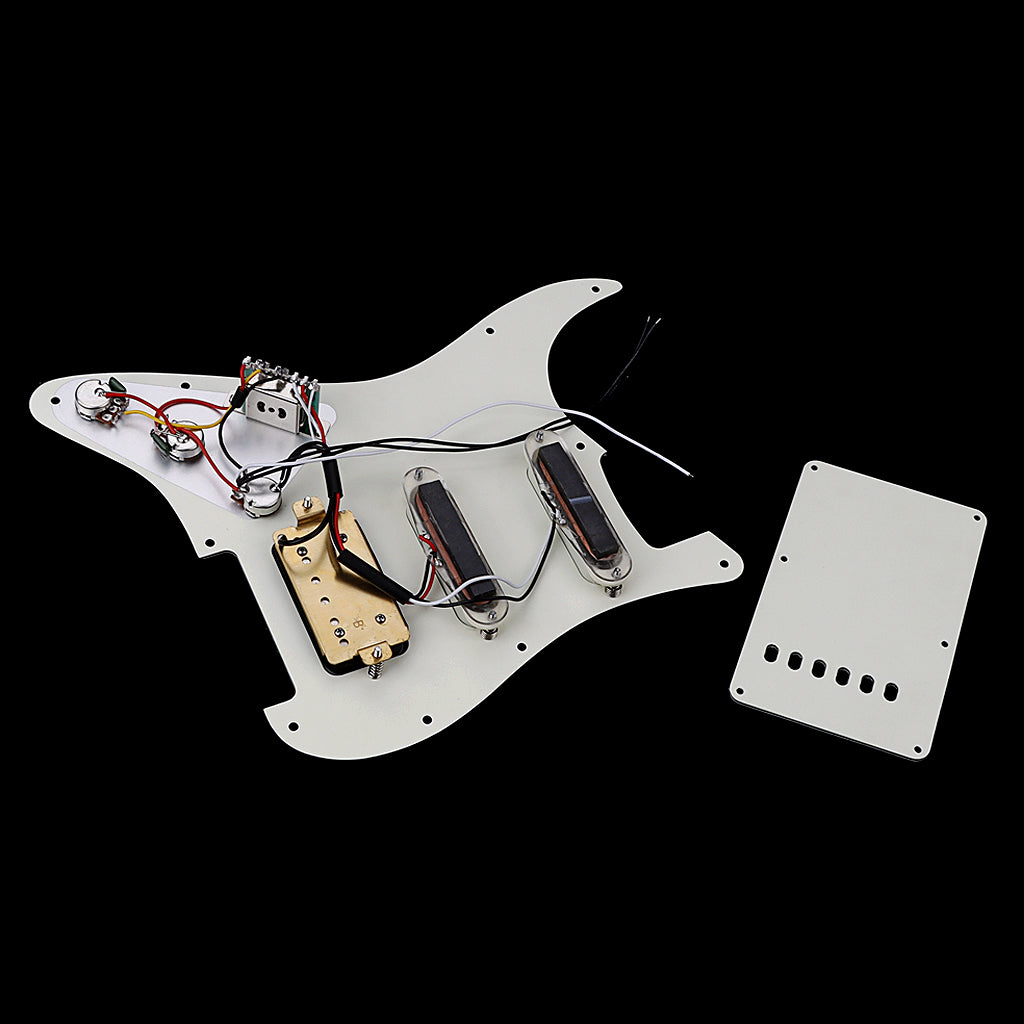

11 holes SSH pickguard comes with full set of pickups,switch,knobs and prewired circuit.

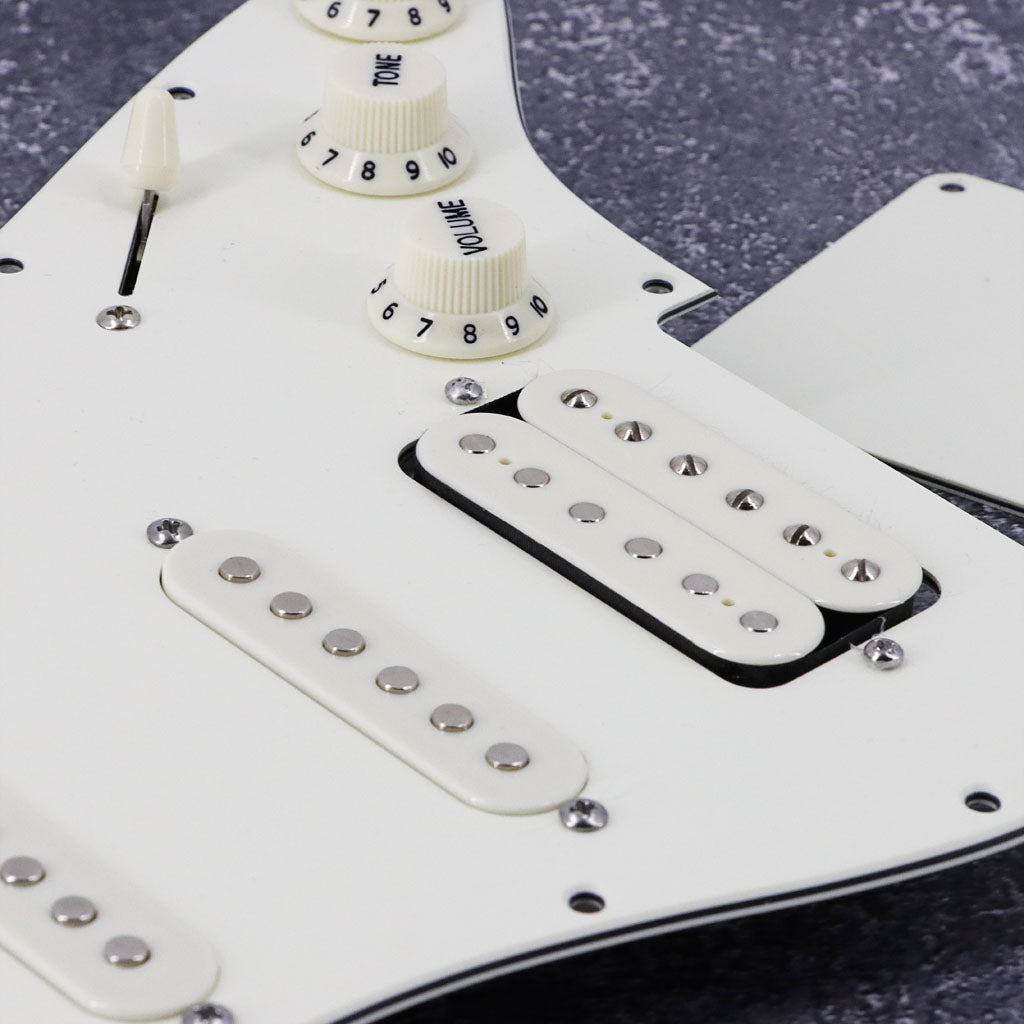

pickups:Neck Dual Rail Humbucker Pickup/Middle Single Coil Pickup/ Bridge Double Coil Humbucker Pickup.
Using 500K potentiometer,long life,reduce noise.

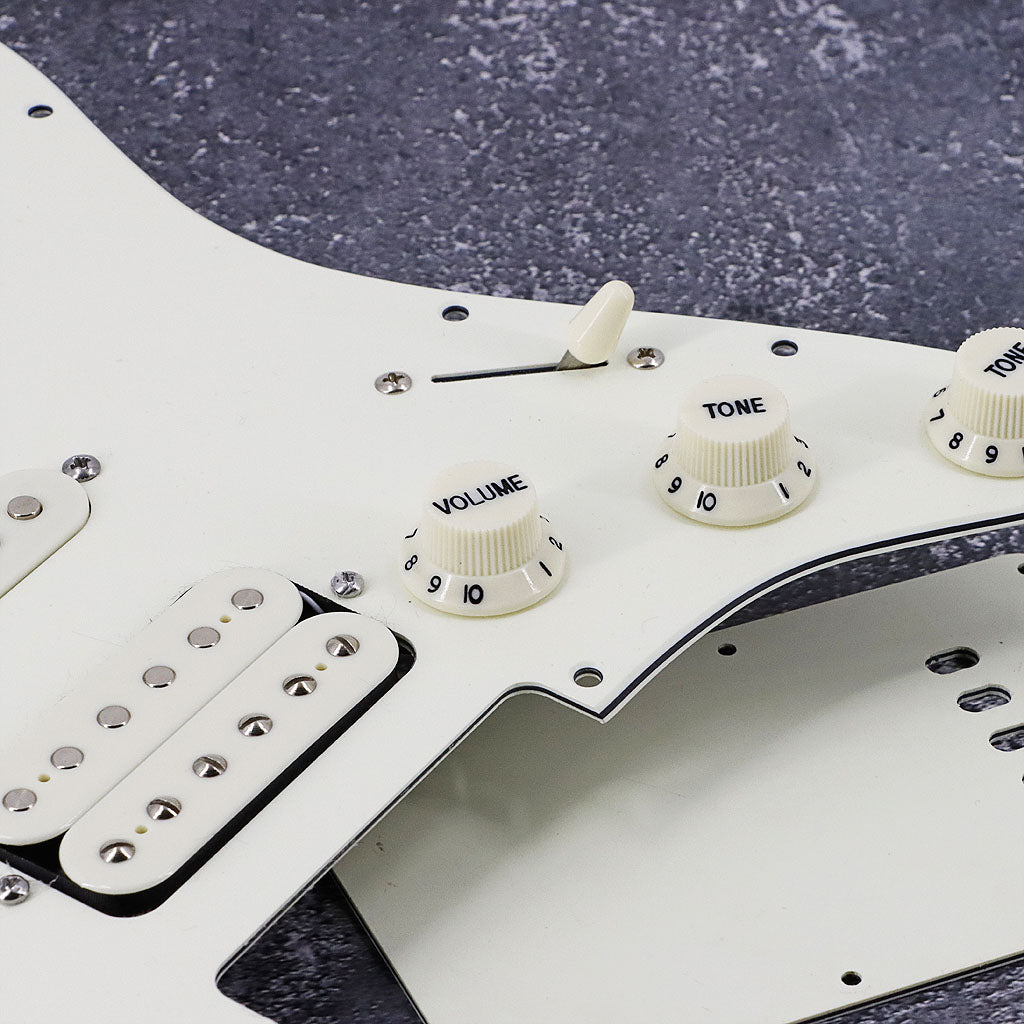

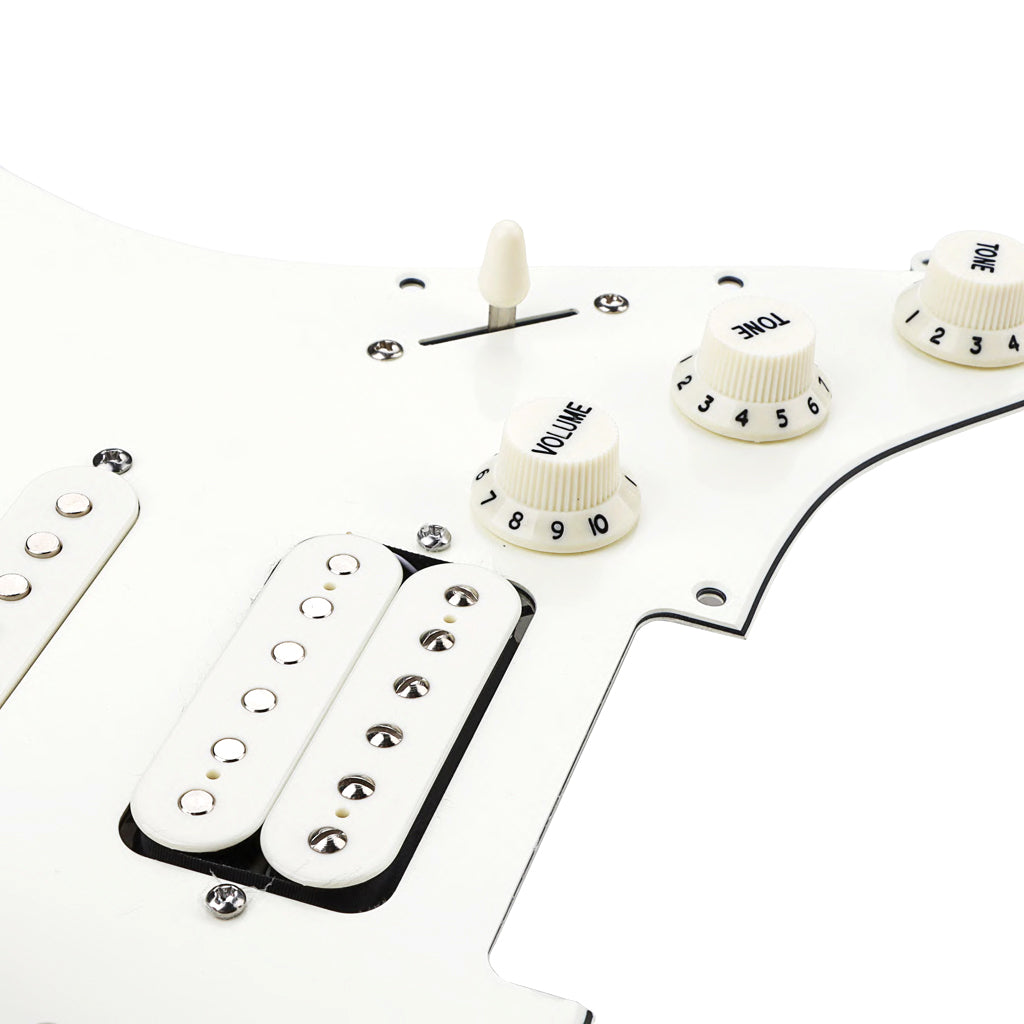

1 volume and 1 tone control knobs white with golden number.
5-way pickup selector toggle switch and 2-way mini switch can better be switched to single.
Using Braided cable connect,better reduce circuit noise.
All you have to do is solder the input jack and your ready to play.

Specification:

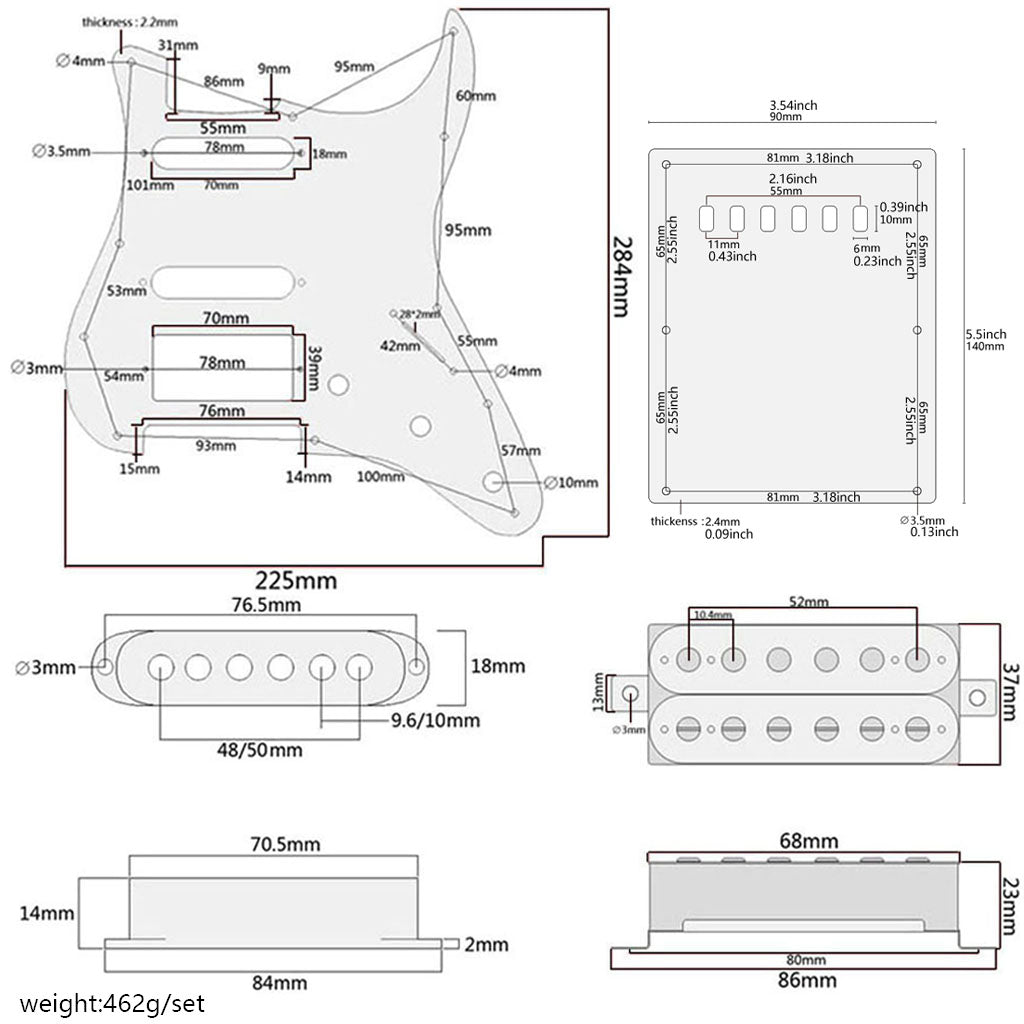

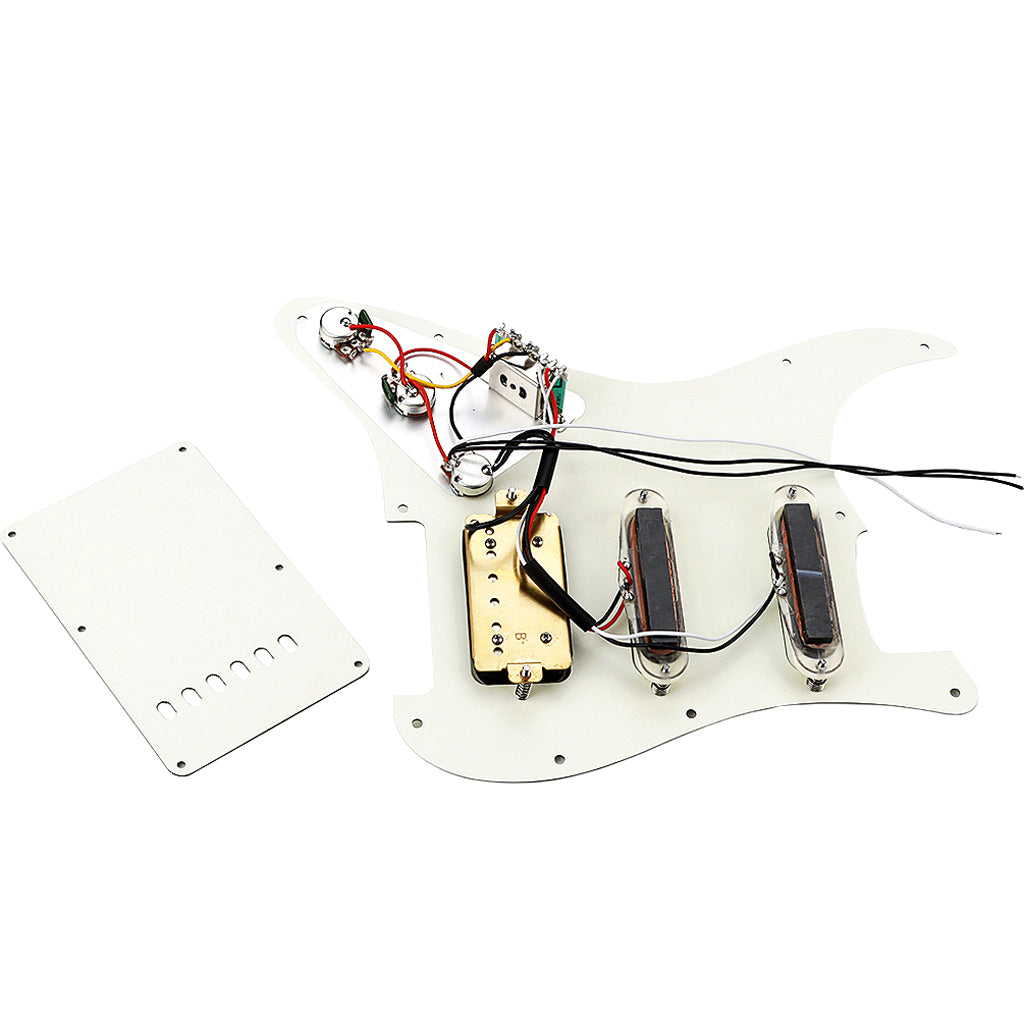

Pickguard:4 layers White Pearl,11 Holes SSH Guitar Pickguard,with pure aluminum foil shielded in the back side and protective film on the top.
Neck Position:Single-Coil ,48mmceramics Magnet,Resistance:5.5k ohm.
Middle Position:Single-Coil Pickup,ceramics Magnet,Flat Fixed Pole Pieces,Pole Spacing 52mm,Resistance: 5.5k ohm.
Bridge Position:Double Coil Humbucker Pickup,ceramics Magnet,6 Fixed & 6 Adjust Pole Pieces,Pole Spacing 52mm,Resistance: 9.5k ohm .
Knob&Pots: 1T1V Knobs,A500k Pots for Tone,B500k Pot for Volume.
5-Way Pickup Selector Toggle Switch with White Cap.

Note: The aluminum foil shield on backside is not flat;  it is with some creases and patches caused during the processing.

There are many styles of ST guitars on the market.  The fixing holes on the panel may not be completely overlapped.  Just lock them directly on the panel, which will not affect the use.  If you mind, please consider carefully.

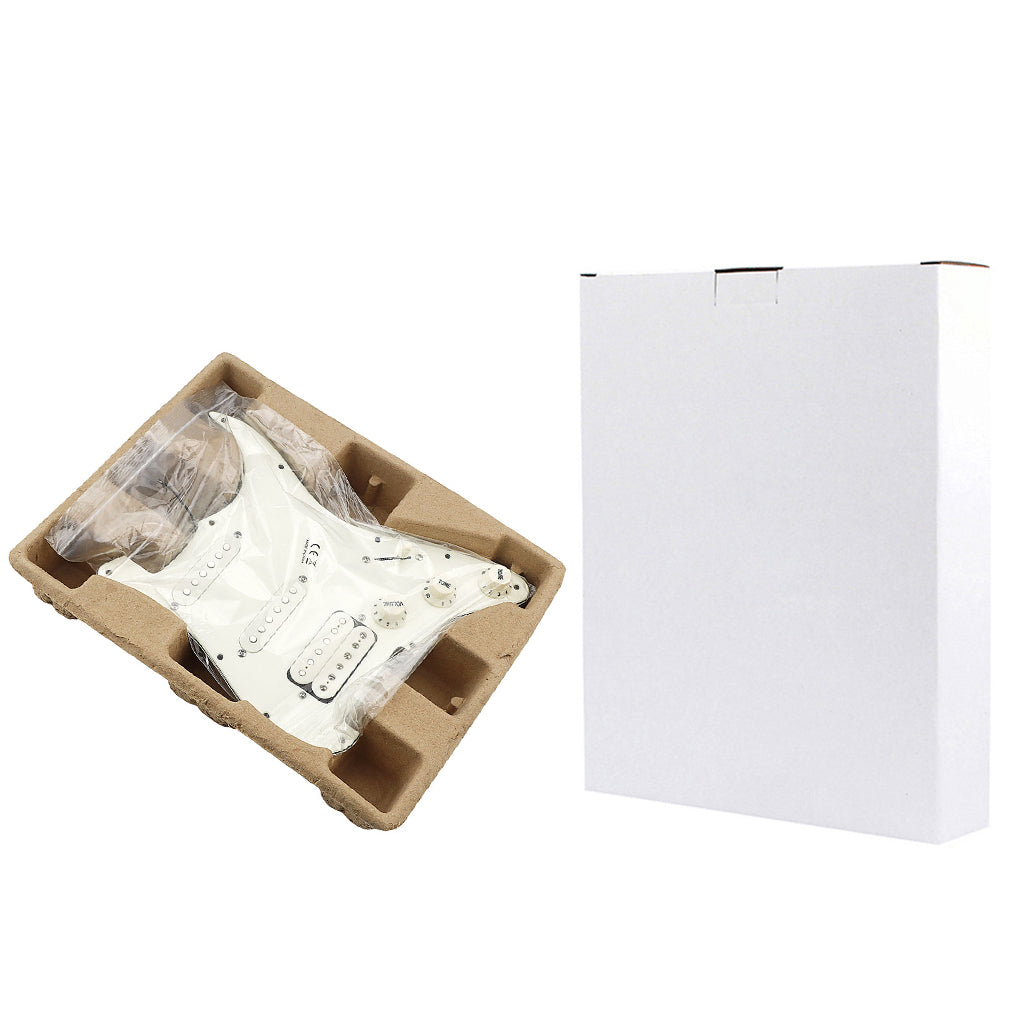

Package Includes:
1 * Prewired Pickguard Set
