Handmade in the "Live Music Capital of the World" homeland brand in China Neck - Alinco 3 Magnet Pole Pieces for smother warmer Texas Blues Tone Bridge Alinco 5 Magnet Pole Pieces for a powerful punch. Fully charged just like the pickups used in the 50s and 60s. Pickups are designed after 50s Telecaster? single coils using time correct 42 AWG Plain Enamel coil wire for the bridge pickup and 43 AWG Plain Enamel coil wire for the neck.
Pickup Electronic specs:
Color:black
Active/Passive: Passive
Approximate Ohms Reading (78 Degrees): Neck 10K Bridge 8.8K. RWRP for hum-cancelling when both pickups are selected.
Magnetic Orientation: Neck South - Bridge South.
Resonant Frequency: Neck 7138 Hz - Bridge 7865 Hz

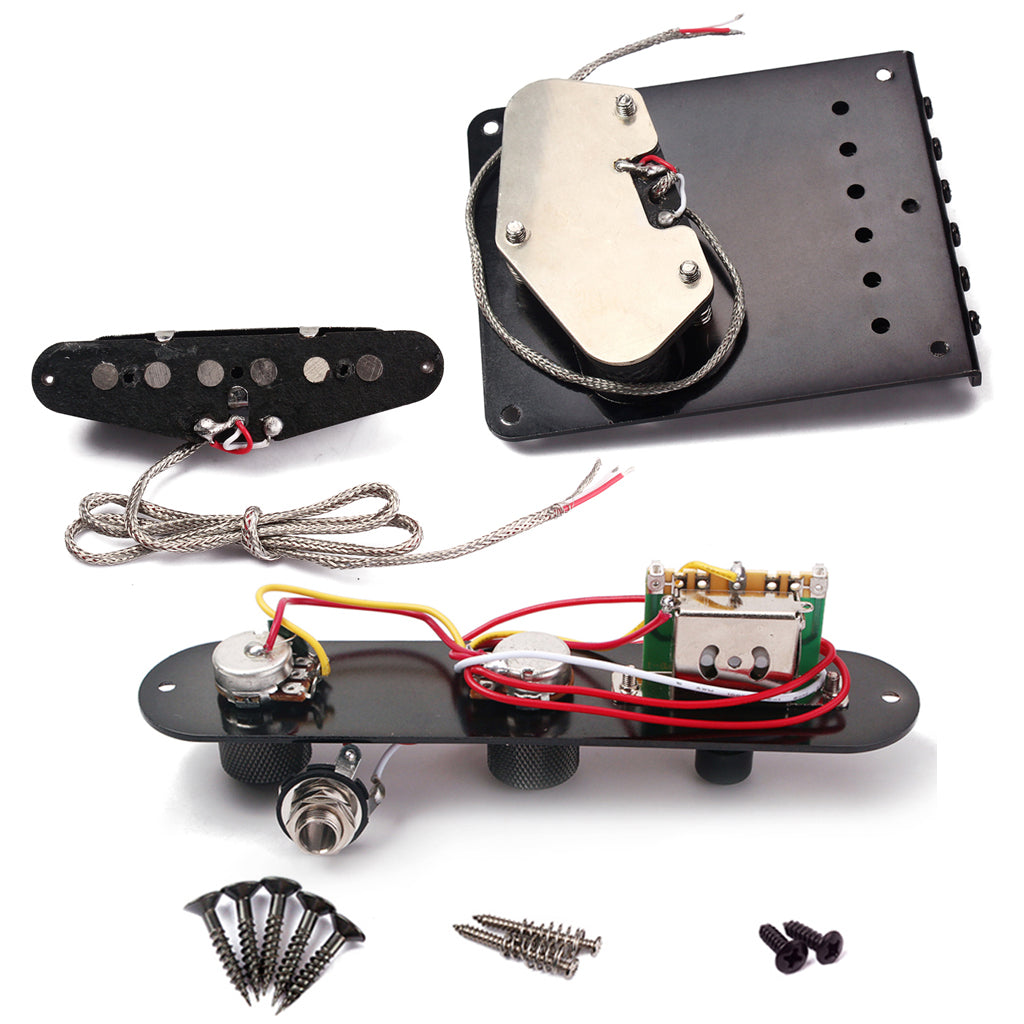

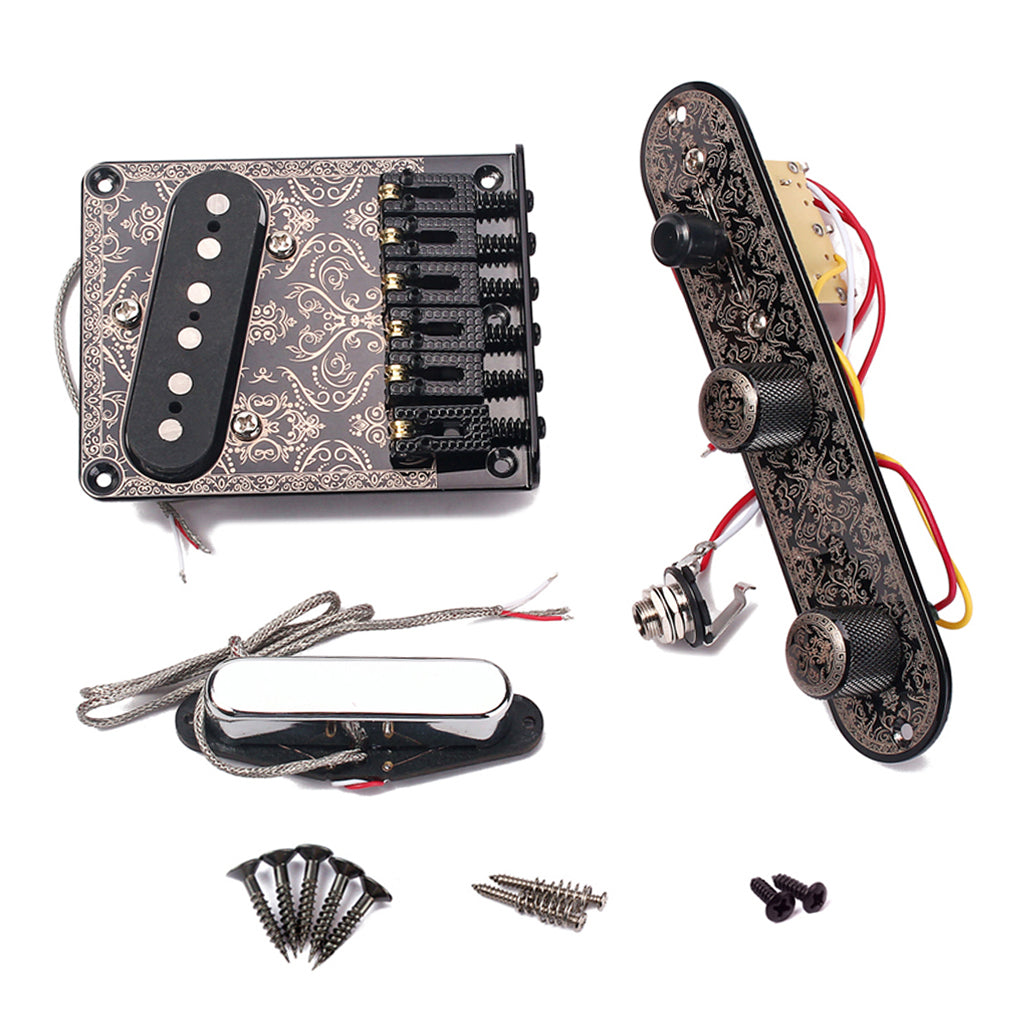

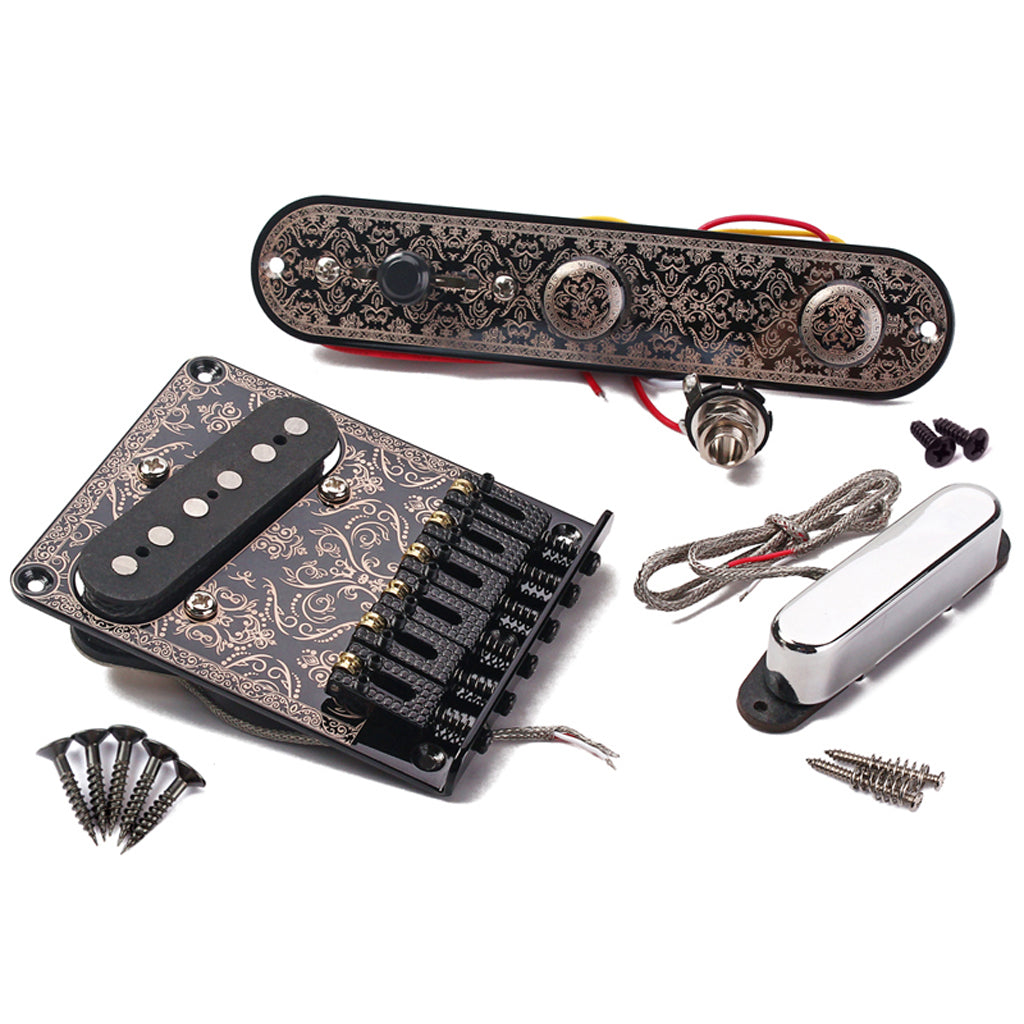

package: bridge and control line and bridge pickup neck pickup and screws
